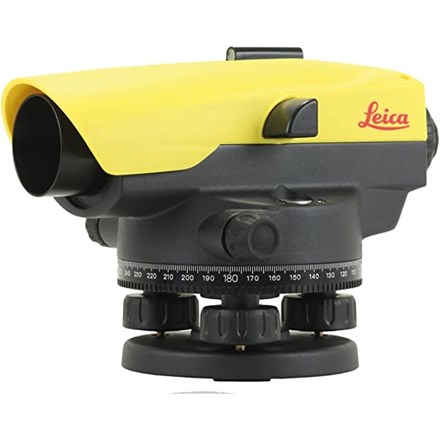

Auto Level Leica NA 320
- Leveling Accuracy ± 2.5mm (ISO 17123-2 certified)
- Telescope Magnification 20x
- Minimum focus distance: < 1m
- IP54 dust and splash water protected
- Distinctive design and proven technology, inside and out
- Protected shape for increased ergonomic handling while ensuring the highest quality results
- Simple handling for quick and accurate measurements for levelling needs
- Manufactured for the most rugged sites and the harshest conditions
Specifications of Leica NA 320 Automatic Level |
|
|---|---|
| Standard deviation for 1 km double levelling | ±2.5mm (ISO 17123-2 certified) |
| Telescope | |
| Telescope image | Upright |
| Magnification | 20x |
| Objective aperture | 36mm |
| Shortest target distance from instr. axis | < 1.0m |
| Field of view at 100 m | < 2.1m |
| Multiplication factor | 100 |
| Additive constant | 0 |
| Compensator | |
| Working range | ± 15′ |
| Setting accuracy (standard deviation) | <0.5″ |
| Sensitivity | 8’/2 mm |
| Horizontal Circle | |
| Graduation | 360° |
| Graduation interval | 1° |
| Weight (net) | 1.5 kg |
| Operating temperature range | –20° C to +40° C |
| Protection class | IP54 dust and splash water protected |
