Software South SGO RTK GNSS

Post-processing kinematic (PPK) survey is important in the harsh environment when the GNSS receivers are not in the cellular signal coverage or the UHF radio signal is disturbed, it is also helpful for surveyors comparing the real-time kinematic (RTK) data with PPK data, to avoid wrong position data, the accuracy after PPK could reach centimeter-level.

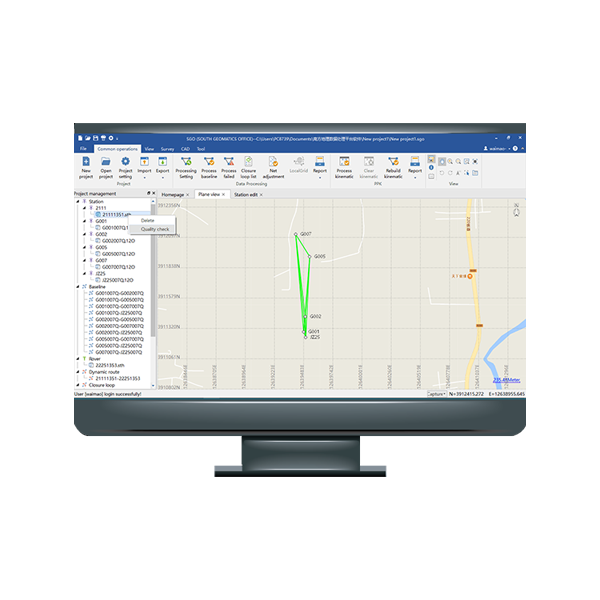

SGO-SOUTH GEOMATICS OFFICE post processing software is a brand new office software for surveyors. There are many enhanced modules integrated. It is not just a post-processing software anymore, but a
comprehensive office software for surveyors. It can edit, process, analysis the data of GNSS receivers, Total Stations, Levels. Besides, the new SGO also supports CAD, Cloud, Online map, Road design, GIS/image processing, EGSTAR project analysis, Earthwork calculation, Data quality check and some tools of debugging. SGO is your reliable partner which can meet your most of job requirements.

For the post-processing of position data, SGO will process the GNSS raw data and calculate the position coordinate, the results are centimeter-level accuracy. Then it will compare the results with the field data, the one with better accuracy will be saved in the shp files. You can also edit the SHP attributes in SGO.

Features:

New high-speed processing engine.
The new data processing engine can quickly import geographic data,
process static baselines, and dynamic baselines. The processing
speed is more than three times higher than the old ones.

Multi formats.
Provides multi import & export format and online IGS data downloading.

EGM.
Adopting the global ultra-high-order Earth Gravitational Model, EGM2008,
which the global coverage ofthe data exceeds 80%, and the elevation
accuracy is improved while ensuring the accuracy ofthe plane.

PPK processing.
The recording PPK data combined with SGO's powerful data postprocessing function can accurately calculate the azimuth
coordinates in areas where the differential signal is not covered. At
the same time, it supports multi-format track export, which is
convenient for graphic re-editing.

Cloud.
Powerful cloud function makes the work between field and office more
timely. The filed data can be real-time sent to the Cloud server and get
precision result back shortly, which improves the efficiency a lot for
surveyors.

Base map.
The new base map function is added to combine the software with
Google Maps intelligence. The data processing personnel can intuitively
obtain the distribution ofthe control net and the environmental
conditions around the site through the visual communication ofthe
base map, thereby judging the data receiving quality ofthe station to
accurate data editing.

Data QC.
The quality of raw data can be easily checked at integrated module, data
quality check function. It provides complete data quality analysis, such
as multi path, epoch quantity, clock jump, cycle slips, real received data,
and sky plot of satellites.

New algorithm.
Supports multi-constellation (GPS/GLONASS/BDS/Galileo) free
combination solution, single-constellation solution, intelligent
elimination of gross error data, accurate reading of data segments.
Adopting the new "tropospheric estimation" algorithm, which
increases the accuracy and achieve high-precision solution for long
baseline by improving data volume and data quality

CAD.
Match CAD's attribute structure, layers and symbols; Support DXF
data format import and export; Measure volume quickly and
easily; Automatically simulate terrain, and create CAD results.

Net adjustment
SGO supports adjustment processing oftotal station and level
measurement data, and combines GNSS control network with traverse
processing, which can provide you with accurate measurement standards.
