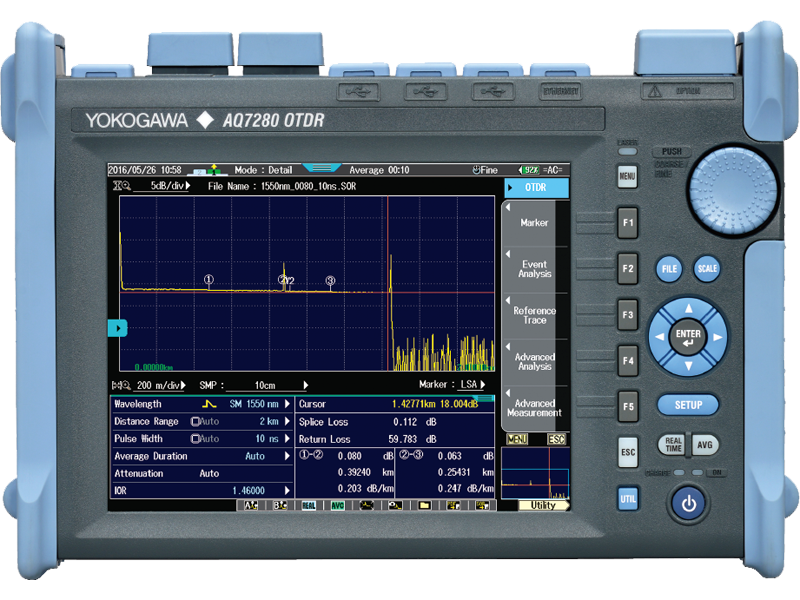

The AQ7280 satisfies a broad range of test and measurement needs in analyzing optical networks from access to core.
The AQ7280 OTDR delivers:
- Reliability: Robust design for operating under harsh field conditions. Proven operating system assuring stability, prompt response, and superior protection against software virus attacks.
- Ease-Of-Use: Dual operation mode by multi-touch touchscreen and hard-key buttons. Fully automatic measurement and easy-to-read analysis reports through new software applications.
- Speed: Lightning startup time. Multi-tasking operation to enhance productivity. Immediate reporting via wireless connectivity.
Multi-Tasking
Enhancing productivity!
Managed by a highly efficient operating system, multiple functions can work simultaneously.
Now, users can perform OTDR measurements on a particular fiber core while simultaneously checking the power level and connector surface quality on others.
Dual-Operation Mode
Touch screen and hard-key buttons!
Tap, swipe, pinch, or press. Choose between the high resolution 8.4" multi-touch capacitive touchscreen or the robust hard-key buttons in any combination desired.
OTDR operations have never been easier!
Lightning Startup Time
Under 10 seconds!
Thanks to the latest high speed hardware and a highly efficient operating system, the AQ7280 starts up from completely OFF to measurement-ready in seconds.
OPTIONS :
Additional Option License for AQ7280
This is a license product for adding applicable optional features on to AQ7280 series on your own.
It is necessary to update main unit firmware in advance to R1.07 or later and above in order to apply this license.
| Model | Suffix codes | Descriptions |
| 735050 | -MNT | Monitoring function |
| -SMP | Smart mapper | |
| -FST | Fiber Surface Test Function |
Optical Power Meter & Checker
Measures and displays optical power of a light source as an absolute/relative value for testing transmitter/network performance. Measurement results can be saved for reference purposes.
Invaluable test instrument during installation and maintenance.
Calibrated and selectable wavelength setting. Single-mode and Multi-mode measurement ready. Continuous wave and modulated wave detection capability.
Two selections of optical power sensors are available- optical power meter and optical power checker, different on the specs and functions.
Optical Light Source
Outputs a stable, continuous wave of light for measuring end-to-end attenuation accurately when paired with Optical Power Sensor.
Modulated light function at 270 Hz/1 kHz/2 kHz is also available for fiber identification or continuity check purpose on a live fiber network.
Visible Light Source
Visible, continuous/modulated red light laser. Invaluable test instrument for checking the continuity of pathcords, launch fibers, or short fiber trunks. Breaks and bendings in fiber can be identified visually as the visible light exits the fiber on such fault events.
