At-a-glance

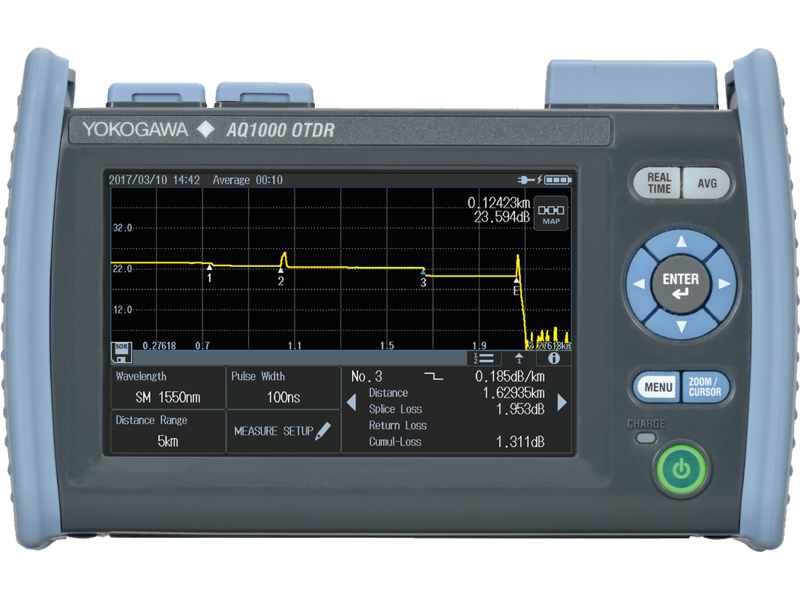

The AQ1000 satisfies test and measurement needs in analyzing access optical networks.
- Wavelengths: 1310 / 1550 nm
- Dynamic ranges: 32 / 30 dB
- Size: 185 mm (W) × 116 mm (H) × 56 mm (D) ( 7.3" (W) × 4.6" (H) × 2.2" (D) )
- Weight: 660 g ( 1.46 Lbs )
Multi-touch touchscreen
Intuitive and responsive
Tap, swipe, pinch or press with the intuitive and responsive multi-touchscreen display. This high resolution, responsive 5.0-inch multi-touch capacitive touchscreen combined with hard-key buttons make OTDR operations simple and intuitive.
One-button measurement
Full-Auto
By simply pressing one singe button, the AQ1000 initiates an OTDR measurement, detects and comprehensively characterizes network events with PASS/FAIL judgment based on user-defined thresholds. The measurement data can be saved automatically if desired.
OTDR view modes
Trace view
Traditional view with OTDR waveforms and event markers.
Map view
Simple, icon-based map view for easy interpretation of network events.
Long battery operation time
Over 10 hours!
No worrying about running out of battery power during your daily work. The AQ1000s high capacity Li-Ion battery will last for 10 hours under the Telcordia standard conditions.
Quick boot-up
Under 10 seconds!
From completely OFF to measurement ready in under 10 seconds!
